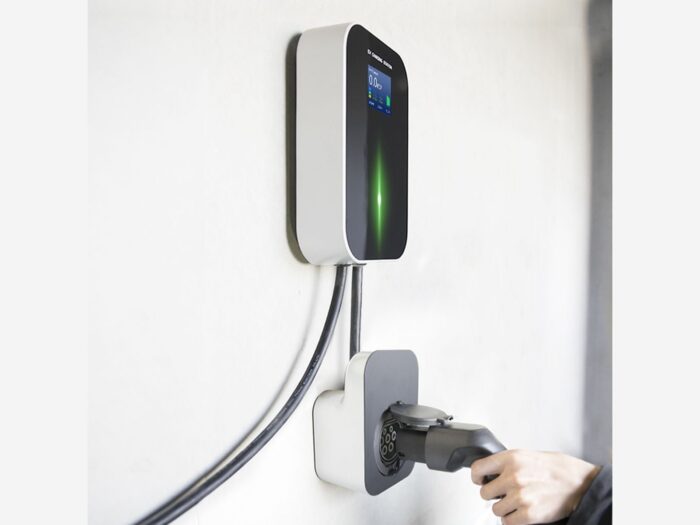

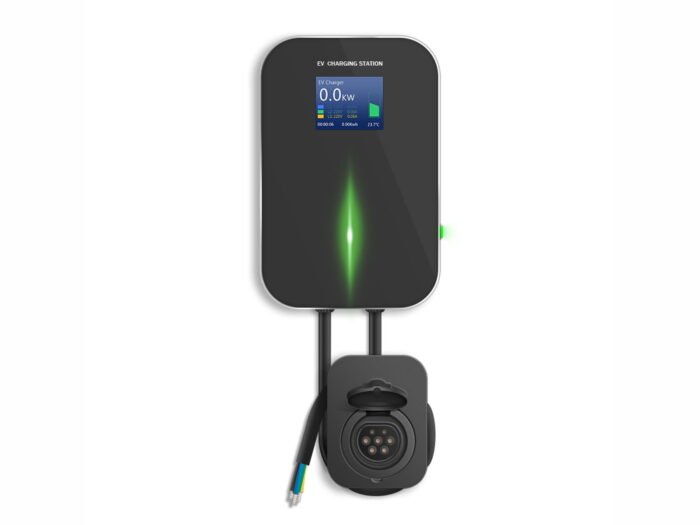

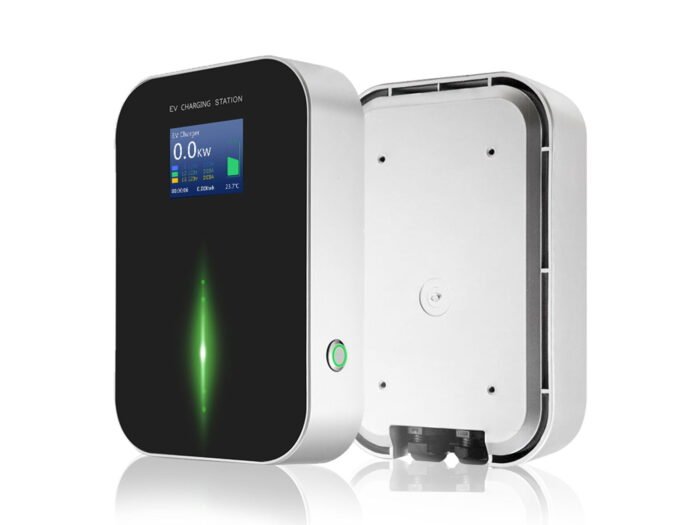

Wallbox EV Charger – 11 KW or 22KW with Type 2 Female Socket

491.80 Incl VAT

Wallbox EV Charger -11KW or 22KW with Type 2 Female Socket.

This is a simple wallbox comes with a color LCD display, users can clearly see the current working status through the color LCD, including charging time, current power, current internal tempera ture and so on.

It can automatically repair non-hardware faults that occur during charging, and faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP67 rating.

The installation is simple, if the customer needs to be installed on the ground, we can provide the installation pole.

The APP version and the RFID version are upgrades for this product, with the same consistent performance and installation method, please contace us if you want these upgrades.

Availability: In stock

(This product will have a delivery time from 6 to 8 weeks)

Input voltage/Output voltage: 100~250V AC / 380V±20V AC (Three Phase)

Input frequency : 47~63Hz

Max. output power : 11KW / 22KW (Three Phase)

Max. output current: 32A

Charging interface type: IEC 62196-2, SAE J1772

Over voltage protection: Yes

Under voltage protection : Yes

Over load protection : Yes

Short circuit protection : Yes

Earth leakage protection : Yes

Over-temp protection : Yes

Lightning protection : Yes

Ethernet/WIFI/4G/Bluetooth: No/Yes/Opt/Yes

LCD: 3.5-inch color display

RCD: Type A

LED Indicator light : Yes

Intelligent power adjustment: Yes

RFID: Optional

Protection degree : IP67

Environment temperature: -20℃ ~ +65℃

Relative humidity : 0-95% non-condensing

Maximum altitude : <2000m

Cooling : Natural air cooling

Standby power consumpiton: <8W

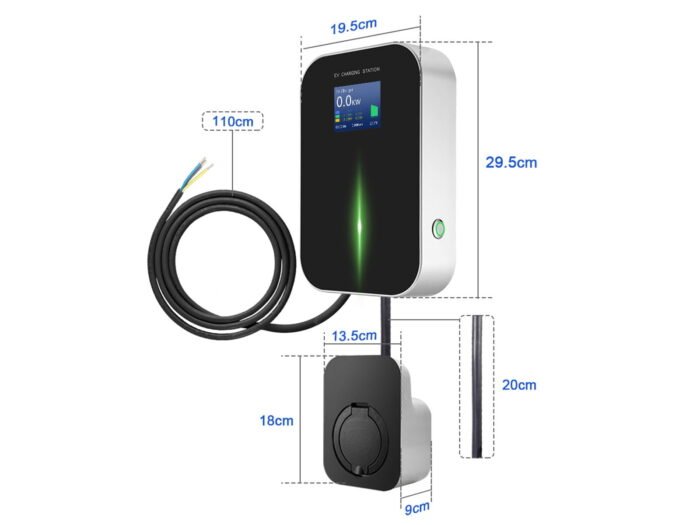

Dimension (W/H/D) : 200/300/70mm

Weight: 6KG

Wall-mounting bracket/Ground-mounting pole: Yes/Opt

Certificate : CE,TUV,FCC,IK10,IP65,CSA

Weight5 kg
Dimensions20 × 30 × 7 cm
Compatibility to the built year of vehicle
